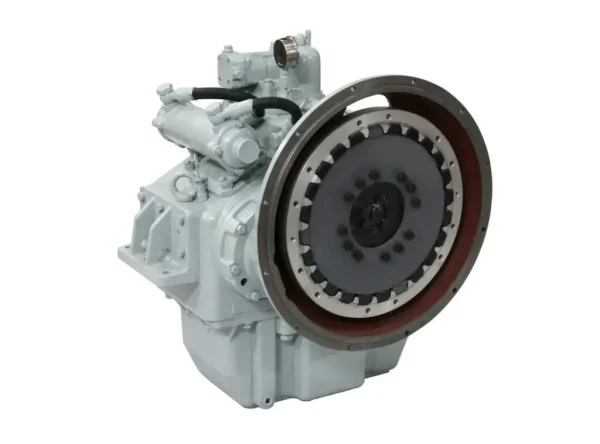

Advance 300 Heavy Duty Marine Hydraulic Gearbox For Commercial Applications and option for Live PTO.
Available in the following ratio options:
1.87:1 (0.35hp/RPM)
2.04:1 (0.35hp/RPM)
2.54:1 (0.35hp/RPM)
3.00:1 (0.33hp/RPM)
3.53:1 (0.30hp/RPM)
4.10:1 (0.25hp/RPM)
4.47:1 (0.25hp/RPM)
4.61:1 (0.25hp/RPM)
4.94:1 (0.20hp/RPM)
5.44:1 (0.17hp/RPM)
Max Input Speed 2500RPM
Prices starting from £13,635 Inc VAT
Trade discounts and dealer opportunities available.
Adaptor Plate Options:
SAE1
SAE0
Control Options:
Mechanical
Electronic
Drive Plate Options:
14”
16”
18”
Option for Live PTO
Option for Gearbox Oil Cooler
Weight 740KG
Drop Centre 264mm
Dimensions 638x870x864 mm
Fantastic value for money heavy duty gearbox, manufactured by Advance gearworks and quality is perfect. These gearboxes are over engineered and built to last in the toughest operating environments.
Many of these gearboxes are available on fast lead times from our stocks and even factory orders for special order gearboxes built from scratch are being delivered within 3 – 5 or more depending on your location which is remarkable for a transmission manufacturer when other major brands quote lead times of 3-6 months!
Advance offer a wide range of heavy duty gearboxes capable of up to 4000hp with reduction ratios of up to 9:1 (subject to model). Horizon Marine Motors are the exclusive US distributors for these gearboxes so please contact us today with details of your project and we can attend to you for sales, installation and support services.
