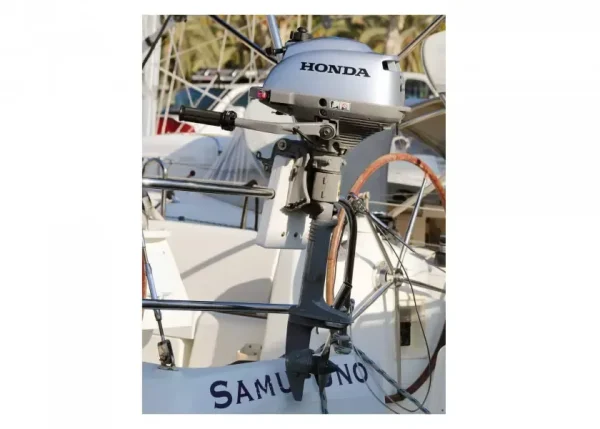

BF 2.3 LCHU Outboard Motor / Long Shaft / Manual Start

$741.00

Reliable, quiet and equipped with ergonomic handle!
Lightweight four-stroke motor from HONDA with a rotary tiller and gas integrated centrifugal clutch. Very good power / weight ratio. Practical to use and to transport thanks to one-hand operation and an ergonomic handle. The ideal auxiliary engine or boat engine. Practical operation.

Product data

SVB Article number38522
EAN3573390040521
Manufacturer No.BF2.3LCHU
DescriptionHONDA Outboard motor BF2.3 LCHU
Power2.3 HP
Displacement57 cm³
Type of drivePetrol
Shaft height Long shaft
Start mode Manual
Steering typeTiller
Trim Manual
Charging coil No
External tankNot possible
Internal tankYes
Tank contents1.1 l
Weight14 kg
Shaft height 57.1 cm
Manufacturer’s warranty* 3 Years

Guaranteed waterproof
Better saltwater protection by means of better corrosion protection and less maintenance! The aluminum housing is first carefully anodized in a patented double process. An epoxy primer is then applied to the glossy silver paint. To protect the engine from UV radiation, it is sealed with a resin clearcoat. A sacrificial anode provides comprehensive protection, and all connections are watertight.

Underwater exhaust
Oil level indicator
Emergency stop switch
Tank capacity: 1 litre
Average consumption: 0.3 L / h.
Start: Manual
Shifting system: Centrifugal clutch, 360 ° rotatable
Charging coil: none

Technical data

Engine	OHV – 1 cylinder
Valves	2 valves
Capacity	57 cm³
Bore x stroke	45 x 36 mm
Max. RPM range	5,000 – 6,000 rpm
Output	1.7 kw / 2.3 hp at 6000 rpm./ min.
Cooling	Air cooled
Fuel Delivery	1 carburettor
Ignition System	Transistor magneto
Gear Ratio	2.42 : 1
Trim and tilt settings	Manual 4 stages
Length	410 mm
Width	280 mm
Height	1100 mm
Shaft length	571 mm
Dry weight	14 kg
